Force Matrix Kit

As an advanced solution for engineers, technicians and research institutions developing next-generation measurement systems, our NanoSen Force Matrix Kit enables precise multi-point force measurement using NanoSen’s PNC technology.

Designed as a plug-and-play platform, it supports up to 100 sensor points — with 6x6 included in the Matrix Kit — featuring active crosstalk elimination, automatic matrix recognition, and a graphical user interface for intuitive 2D visualization. Ideal for rapid prototyping, tactile sensing research, and industrial testing.

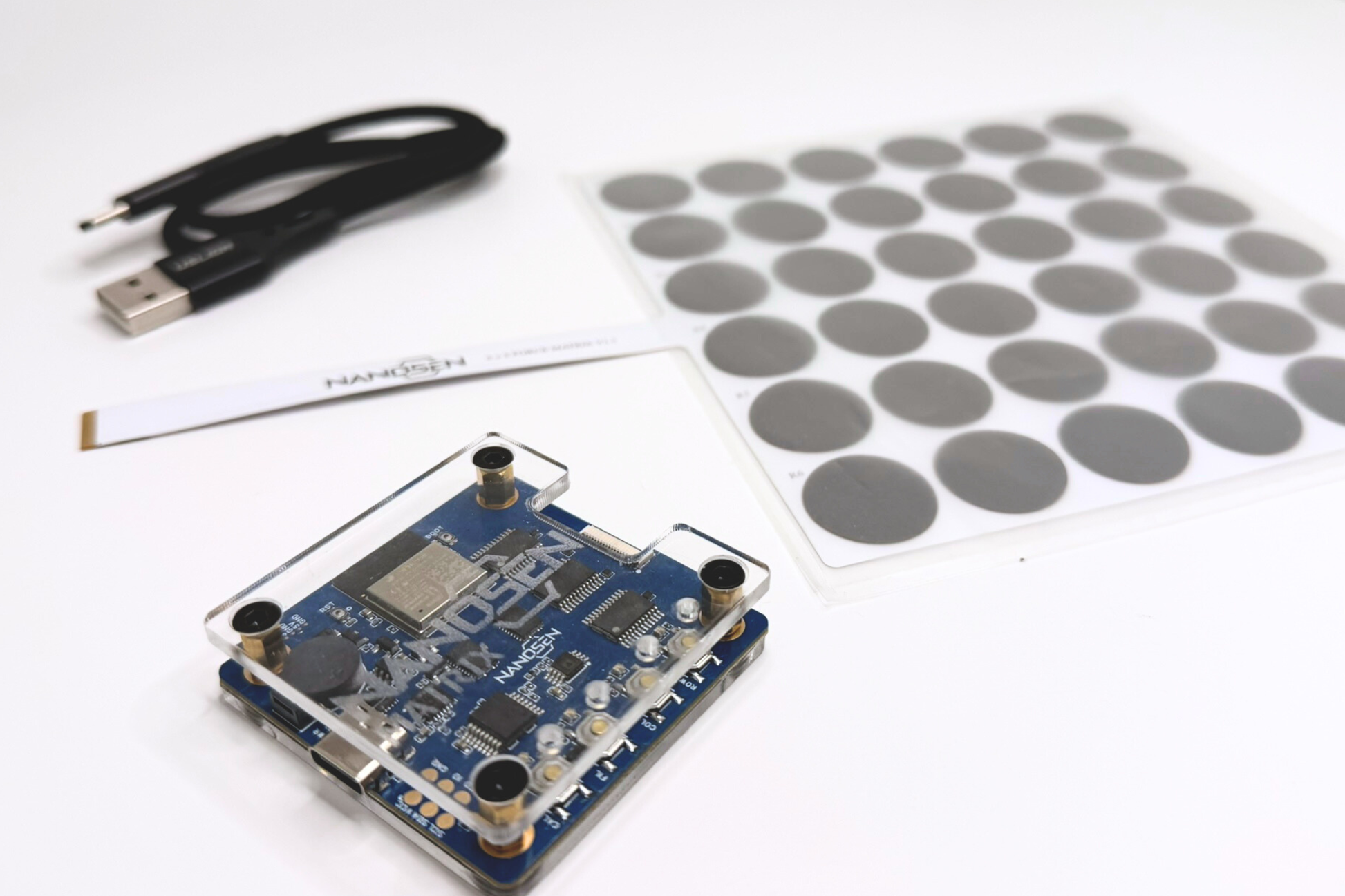

Content of the kit

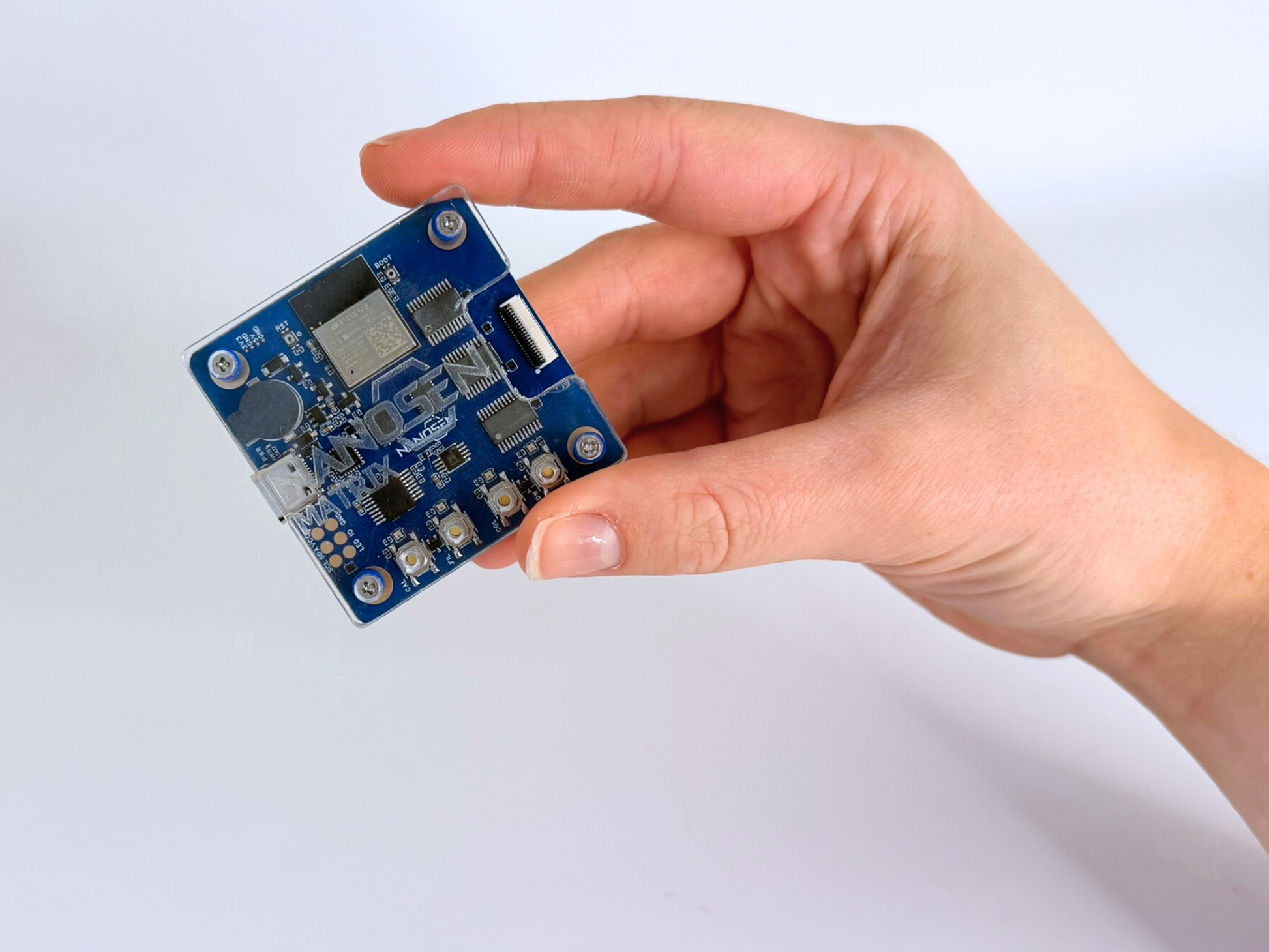

Readout electronics
Necessary for measuring the force sensor matrix while actively suppressing electrical crosstalk between sensors.

Sensor matrix
The 6x6 sensor matrix is formed by 36 sensor points with a 20 mm diameter PNC sensor material combined with suitable contact electrodes.

USB cable
For connecting the readout electronics to a PC for power and serial data transmission.

*Optional upgrade: The readout electronics can be upgraded to 100 sensor channels under request

Limited quantities of the new Force Matrix Kit are available.
If the current batch runs out, you can place a preorder and receive your kit in about two weeks.

📦 International Shipping Notice:
For orders outside the EU, import taxes may apply. These fees are the responsibility of the recipient and are not included in the product price or shipping cost.
